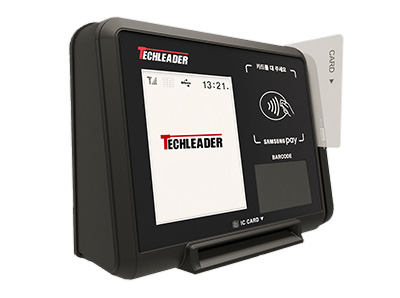

TL-3600

TL-3600
가맹점 환경의 다양성을 극복한 통합 Solution
국내 최초 any type OS 대응 All in One Payment Device
구분 사양 상세
MCU ARM-based 32-bit MCU, 150DMIPs
Operation : Firmware
Memory Flash : 1MB / RAM: 128+4KB Built-in MCU / NOR Flash : 8MB
LCD 2.8˝ TFT 128*64pixel, 16.7M Colors, Controller, 4-wire resistive touch input
AUDIO I2S Audio Codec, 0.5W 1ch Power Amp & Speaker
RF Card(contactless card) 13.56MHz, ISO14443A&B, Mifare
MS&IC IC : SCS-SIFM4v0(Dual Socket 양면지원), CPU[Cortex M3, 108MHz], 1MB/256KB SRAM
MSR : 2,3Track, Smart Card ISO7816 EMV L1/L2
SAM Slot SIM type 4ea
SERIAL RS-232 Port : 3ea
USB A TYPE Upgrade Only
ETHERNET 1port, TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE Hardwired
TCP/IP Protocols support, 10BasedT/100Based TX Ethernet PHY embedded
COIN Coin/Bill pulse input, Coin/Bonus pulse out
Display 3.5' TFT 320*480pixel / Full Colors / Touch input
POWER 150KHz, 3A PWM Buck DC/DC Converter, Input DC13.8V[9V ~ 16V] from Taxi power, Output DC5.0V]
DIMENSLONS 135*97*46

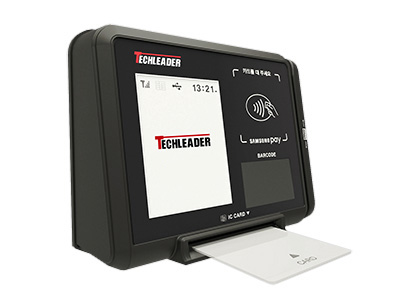

IC
MS

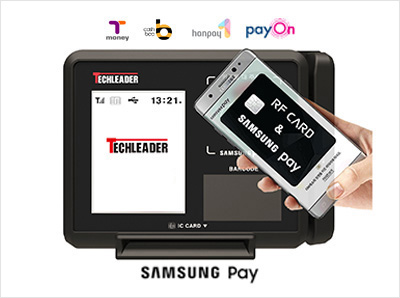

RF

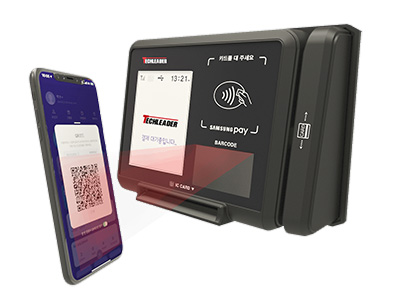

BARCODE
