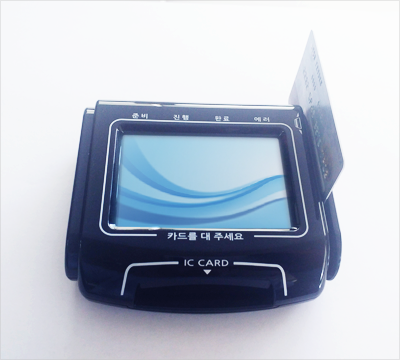

TL-3500S

TL-3500S
가맹점 환경의 다양성을 극복한 통합 Solution
국내 최초 any type OS 대응 All in One Payment Device
구분 사양 상세
CPU ARM-based 32-bit
Language Programs Firm ware
Memory Flash : 1MB/RAM: 128+4KB Built-in MCU / NOR Flash : 8MB

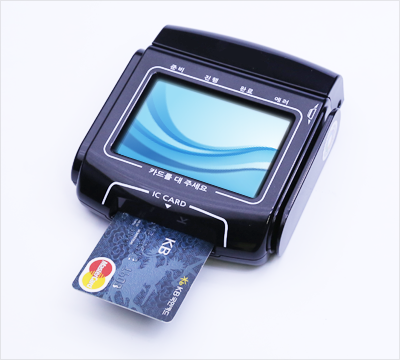

IC Card(contact card) ISO 7816 /EMV Level 1,2 / Landing type
Magnetic Card 2,3 Track

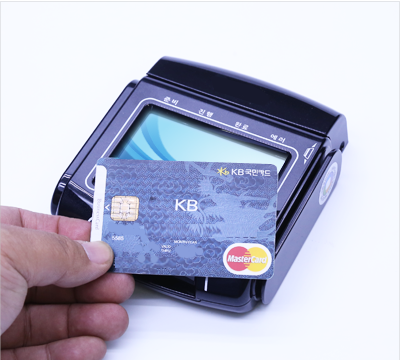

RF Card(contactless card) Mifare, ISO- 14443 Type A,B
SAM Slot 4 SAMs
Serial RS-232 / 2EA SCS-slFM2vO
USB A TYPE(Host) 2.0 / 1EA
USB B TYPE(Uart) 2.0 / 1EA
EtherNet 10BasedT / 100BASED
LED TL-3500S 4 LED
Display 3.5' TFT 320*480pixel / Full Colors / Touch input
Dimension 116(W)mm* 107(L)mm* 33(D)mm
Power DC 9~24V Input / 1A 이상
(대기상태 : 350mmA / 결제모드 : 400mmA)
IC
MS
RF

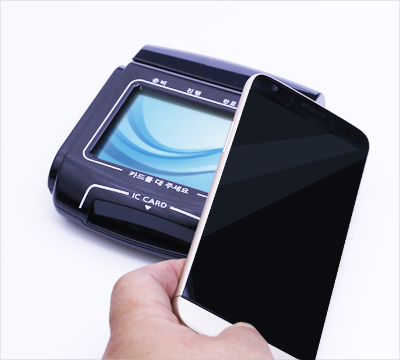

삼성페이
